Tire Trailer

Aircraft Tire Trailer

TIRE HANDLING, SIMPLIFIED

The Wilcox GSE Tire Trailer is purpose-built to support safe and efficient transport of aircraft tires on the ramp. Lightweight, maneuverable, and durable, this trailer is designed to meet the daily demands of airport operations, while helping ground crews move main and nose wheels with confidence.

DESIGNED FOR RAMP EFFICIENCY

Made from heavy-duty aluminum, the Wilcox Tire Trailer is equipped with a low-profile, gas-assisted loading ramp for easier handling of heavy tires. The divided interior accommodates both main and nose wheels, while the compact footprint makes it easy to maneuver in tight spaces. With solid tires, rear parking brakes, and thoughtful safety features, this trailer is built to perform reliably in active airport environments.

Tire Trailer

Aluminum tubular frame
Divided trailer layout
Rear folding ramp
Gas shock assist for smooth, ergonomic ramp operation
Solid rubber tires
Greaseable hubs
Tow bar with integrated parking brake
Compact footprint
Non-painted finish
Heavy duty aluminum tubular structure with checkerplate flooring

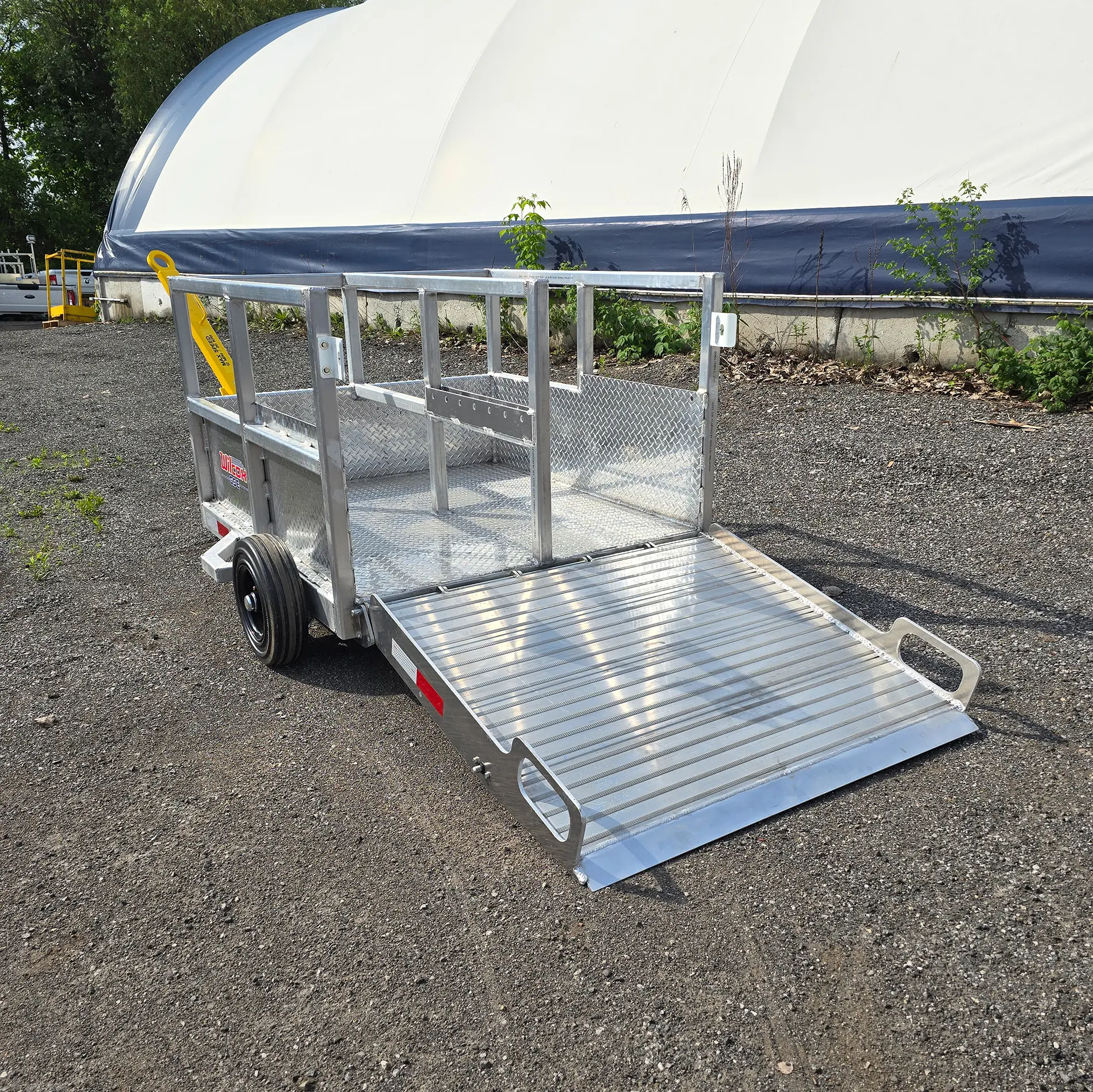

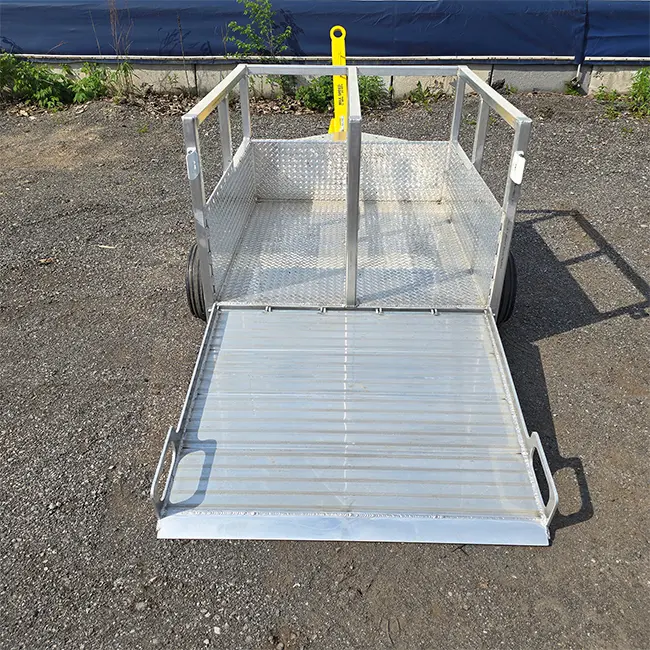

Rear folding ramp with gas shock assist
Divided loadspace for wheels - 2 x 24” wide each
Solid 4.00 x 8 tires with greaseable hubs
Self-locking ramp mechanism
Integrated tow bar parking brake
Lightweight construction for improved towing

Aircraft GSE Tire Trailer FEATUREs

DURABILITY

The aluminum structure is built to last, resisting corrosion while keeping overall trailer weight low. Fully welded by certified welders and a reinforced folding ramp design provide long-term reliability for daily airport use.

SAFETY

The Wilcox Tire Trailer is designed with safety in every detail. It features a non-slip ramp surface and gas-assisted lift system to ease the lifting process and reduce operator strain. The integrated parking brake engages automatically when the tow bar is raised, helping to prevent unintended movement when the trailer is not in use.

SUSTAINABILITY

The Wilcox GSE Tire Trailer is built with sustainability in mind. Its lightweight aluminum construction not only reduces towing demands and fuel consumption but also extends product life through corrosion resistance. With a non-painted finish and minimal maintenance requirements, this trailer supports long-term, eco-friendly ground operations.
